Standard Structural Sizes


American Standard Steel Channel
Designation	Dimensions					Static Parameters
Designation	Dimensions					Moment of Inertia		Elastic Section Modulus
Imperial (in x lb/ft)	Depth h (in)	Width w (in)	Web Thickness s (in)	Sectional Area (in²)	Weight (lb/ft)	I_x(in⁴)	I_y(in⁴)	W_x(in³)	W_y(in³)
C 15 x 50	15	3.716	0.716	14.7	50	404	11.0	53.8	3.78
C 15 x 40	15	3.520	0.520	11.8	40	349	9.23	46.5	3.37
C 15 x 33.9	15	3.400	0.400	9.96	33.9	315	8.13	42.0	3.11

C 12 x 30	12	3.170	0.510	8.82	30	162	5.14	27.0	2.06
C 12 x 25	12	3.047	0.387	7.35	25	144	4.47	24.1	1.88
C 12 x 20.7	12	2.942	0.282	6.09	20.7	129	3.88	21.5	1.73

C 10 x 30	10	3.033	0.673	8.82	30	103	3.94	20.7	1.65
C 10 x 25	10	2.886	0.526	7.35	25	91.2	3.36	18.2	1.48
C 10 x 20	10	2.739	0.379	5.88	20	78.9	2.81	15.8	1.32
C 10 x 15.3	10	2.600	0.240	4.49	15.3	67.4	2.28	13.5	1.16

C 9 x 20	9	2.648	0.448	5.88	20	60.9	2.42	13.5	1.17
C 9 x 15	9	2.485	0.285	4.41	15	51.0	1.93	11.3	1.01
C 9 x 13.4	9	2.433	0.233	3.94	13.4	47.9	1.76	10.6	0.96

C 8 x 18.75	8	2.527	0.487	5.51	18.75	44.0	1.98	11.0	1.01
C 8 x 13.75	8	2.343	0.303	4.04	13.75	36.1	1.53	9.03	0.85
C 8 x 11.5	8	2.260	0.220	3.38	11.5	32.6	1.32	8.14	0.78

C 7 x 14.75	7	2.299	0.419	4.33	14.75	27.2	1.38	7.78	0.78
C 7 x 12.25	7	2.194	0.314	3.60	12.25	24.2	1.17	6.93	0.70
C 7 x 9.8	7	2.090	0.210	2.87	9.8	21.3	0.97	6.08	0.63

C 6 x 13	6	2.157	0.437	3.83	13	17.4	1.05	5.80	0.64
C 6 x 10.5	6	2.034	0.314	3.09	10.5	15.2	0.87	5.06	0.56
C 6 x 8.2	6	1.920	0.200	2.40	8.2	13.1	0.69	4.38	0.49

C 5 x 9	5	1.885	0.325	2.64	9	8.90	0.63	3.56	0.45
C 5 x 6.7	5	1.750	0.190	1.97	6.7	7.49	0.48	3.00	0.38

C 4 x 7.25	4	1.721	0.321	2.13	7.25	4.59	0.43	2.29	0.34
C 4 x 5.4	4	1.584	0.184	1.59	5.4	3.85	0.32	1.93	0.28

C 3 x 6	3	1.596	0.356	1.76	6	2.07	0.31	1.38	0.27
C 3 x 5	3	1.498	0.258	1.47	5	1.85	0.25	1.24	0.23
C 3 x 4.1	3	1.410	0.170	1.21	4.1	1.66	0.20	1.10	0.20

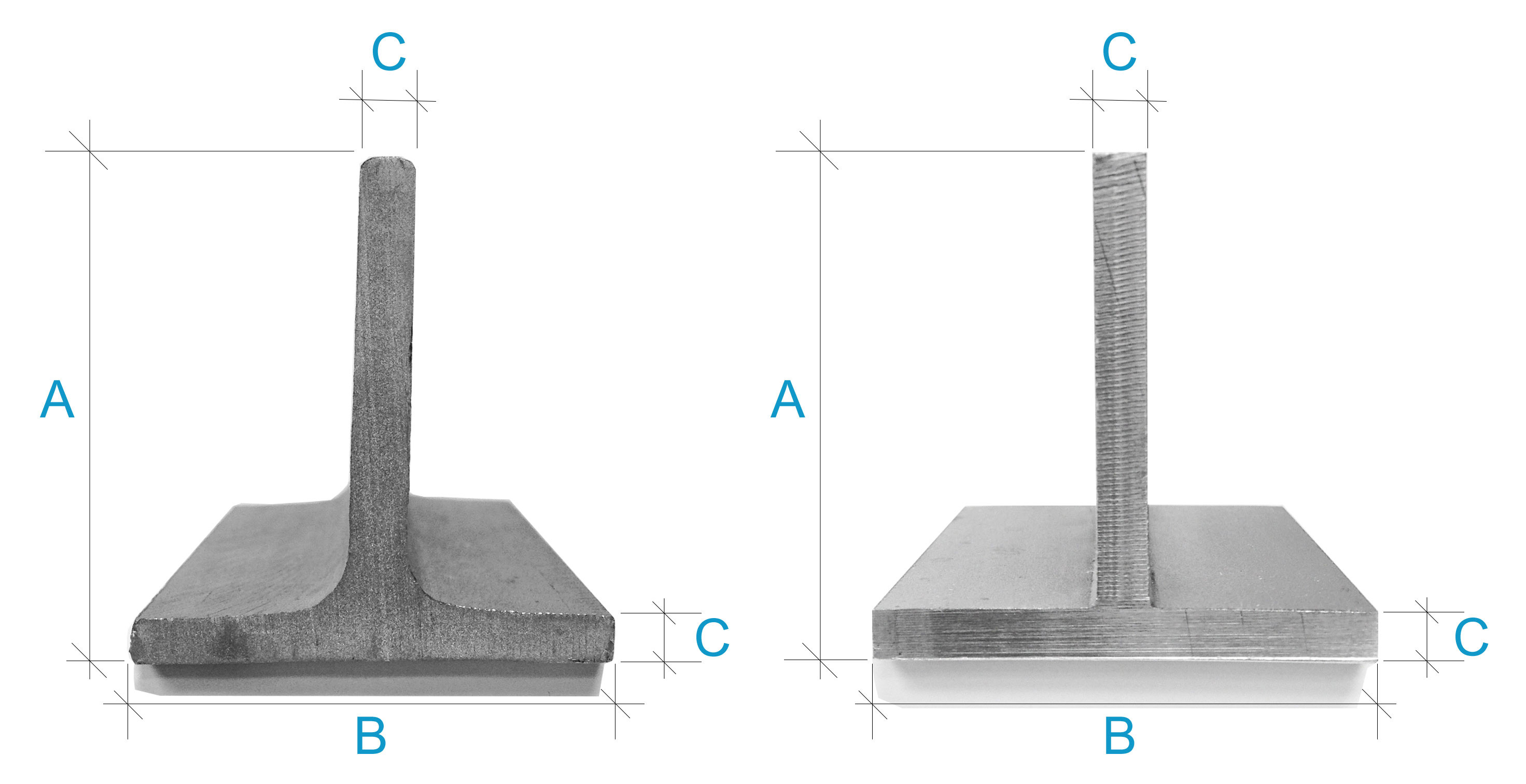

Hot rolled stainless steel tees: dimensional tolerances and grades according to ASTM A276, ASTM A484, ASTM A479, ASME SA479 Laser Fused stainless steel tees are produced according to ASTM A1069/A1069M/11, dimensional tolerances and grades according to ASTM A276, ASTM A484, ASTM A479/A479M
A	B	C	Est. Wt.	Technology
0.750	0.750	0.125	0.59 lbs/ft	Hot Rolled
0.750	0.750	0.1875	0.84 lbs/ft	Hot Rolled
1.000	1.000	0.125	0.80 lbs/ft	Hot Rolled
1.000	1.000	0.1875	1.20 lbs/ft	Hot Rolled
1.500	1.500	0.1875	1.90 lbs/ft	Laser Fused
1.500	1.500	0.250	2.43 lbs/ft	Laser Fused
1.750	1.750	0.1875	2.16 lbs/ft	Laser Fused
2.000	2.000	0.1875	2.44 lbs/ft	Laser Fused
2.000	2.000	0.250	3.19 lbs/ft	Hot Rolled
2.000	2.000	0.250	3.19 lbs/ft	Laser Fused
2.500	2.500	0.250	4.09 lbs/ft	Laser Fused
3.000	3.000	0.250	4.97 lbs/ft	Laser Fused
3.000	3.000	0.375	7.30 lbs/ft	Laser Fused
4.000	4.000	0.250	6.70 lbs/ft	Laser Fused
4.000	4.000	0.375	9.74 lbs/ft	Laser Fused
5.000	5.000	0.250	8.40 lbs/ft	Laser Fused
5.000	5.000	0.375	12.40 lbs/ft	Laser Fused
5.000	5.000	0.500	16.30 lbs/ft	Laser Fused
6.000	6.000	0.250	10.10 lbs/ft	Laser Fused
6.000	6.000	0.375	15.30 lbs/ft	Laser Fused
6.000	6.000	0.500	19.70 lbs/ft	Laser Fused
7.000	7.000	0.250	11.80 lbs/ft	Laser Fused
7.000	7.000	0.375	17.50 lbs/ft	Laser Fused
7.000	7.000	0.500	23.10 lbs/ft	Laser Fused
8.000	8.000	0.250	13.50 lbs/ft	Laser Fused
8.000	8.000	0.375	20.10 lbs/ft	Laser Fused
8.000	8.000	0.500	26.50 lbs/ft	Laser Fused


Properties in imperial units of American Wide Flange Beams according ASTM A6
Designation	Dimensions					Static Parameters
Designation	Dimensions					Moment of Inertia		Elastic Section Modulus
Imperial (in x lb/ft)	Depth h (in)	Width w (in)	Web Thickness s (in)	Sectional Area (in²)	Weight (lb/ft)	I_x(in⁴)	I_y(in⁴)	W_x(in³)	W_y(in³)
W 27 x 178	27.8	14.09	0.725	52.3	178	6990	555	502	78.8
W 27 x 161	27.6	14.02	0.660	47.4	161	6280	497	455	70.9
W 27 x 146	27.4	14	0.605	42.9	146	5630	443	411	63.5
W 27 x 114	27.3	10.07	0.570	33.5	114	4090	159	299	31.5
W 27 x 102	27.1	10.02	0.515	30.0	102	3620	139	267	27.8
W 27 x 94	26.9	10	0.490	27.7	94	3270	124	243	24.8
W 27 x 84	26.7	9.96	0.460	24.8	84	2850	106	213	21.2

W 24 x 162	25	13	0.705	47.7	162	5170	443	414	68.4
W 24 x 146	24.7	12.9	0.650	43.0	146	4580	391	371	60.5
W 24 x 131	24.5	12.9	0.605	38.5	131	4020	340	329	53.0
W 24 x 117	24.3	12.8	0.55	34.4	117	3540	297	291	46.5
W 24 x 104	24.1	12.75	0.500	30.6	104	3100	259	258	40.7
W 24 x 94	24.1	9.07	0.515	27.7	94	2700	109	222	24.0
W 24 x 84	24.1	9.02	0.470	24.7	84	2370	94.4	196	20.9
W 24 x 76	23.9	9	0.440	22.4	76	2100	82.5	176	18.4
W 24 x 68	23.7	8.97	0.415	20.1	68	1830	70.4	154	15.7
W 24 x 62	23.7	7.04	0.430	18.2	62	1550	34.5	131	9.8
W 24 x 55	23.6	7.01	0.395	16.2	55	1350	29.1	114	8.3

W 21 x 147	22.1	12.51	0.720	43.2	147	3630	376	329	60.1
W 21 x 132	21.8	12.44	0.650	38.8	132	3220	333	295	53.5
W 21 x 122	21.7	12.39	0.600	35.9	122	2960	305	273	49.2
W 21 x 111	21.5	12.34	0.550	32.7	111	2670	274	249	44.5
W 21 x 101	21.4	12.29	0.500	29.8	101	2420	248	227	40.3
W 21 x 93	21.6	8.42	0.580	27.3	93	2070	92.9	192	22.1
W 21 x 83	21.4	8.36	0.515	24.3	83	1830	81.4	171	19.5
W 21 x 73	21.2	8.3	0.455	21.5	73	1600	70.6	151	17.0
W 21 x 68	21.1	8.27	0.430	20.0	68	1480	64.7	140	15.7
W 21 x 62	21	8.24	0.400	18.3	62	1330	57.5	127	13.9
W 21 x 57	21.1	6.56	0.405	16.7	57	1170	30.6	111	9.4
W 21 x 50	20.8	6.53	0.380	14.7	50	984	24.9	94.5	7.6
W 21 x 44	20.7	6.5	0.350	13.0	44	843	20.7	81.6	6.4

W 18 x 119	19	11.27	0.655	35.1	119	2190	253	231	44.9
W 18 x 106	18.7	11.2	0.590	31.1	106	1910	220	204	39.4
W 18 x 97	18.6	11.15	0.535	28.5	97	1750	201	188	36.1
W 18 x 86	18.4	11.09	0.480	25.3	86	1530	175	166	31.6
W 18 x 76	18.2	11.04	0.425	22.3	76	1330	152	146	27.6
W 18 x 71	18.5	7.64	0.495	20.8	71	1170	60.3	127	15.8
W 18 x 65	18.4	7.59	0.450	19.1	65	1070	54.8	117	14.4
W 18 x 60	18.2	7.56	0.415	17.6	60	984	50.1	108	13.3
W 18 x 55	18.1	7.53	0.390	16.2	55	890	44.9	98.3	11.9
W 18 x 50	18	7.5	0.355	14.7	50	800	40.1	88.9	10.7
W 18 x 46	18.1	6.06	0.360	13.5	46	712	22.5	78.8	7.4
W 18 x 40	17.9	6.02	0.315	11.8	40	612	19.1	68.4	6.4
W 18 x 35	17.7	6	0.300	10.3	35	510	15.3	57.6	5.1

W 16 x 100	16.97	10.425	0.585	29.4	100	1490	186	175	35.7
W 16 x 89	16.75	10.365	0.525	26.2	89	1300	163	155	31.4
W 16 x 77	16.52	10.295	0.455	22.6	77	1100	138	134	26.9
W 16 x 67	16.33	10.235	0.395	19.7	67	954	119	117	23.2
W 16 x 57	16.43	7.120	0.430	16.8	57	758	43.1	92.2	12.1
W 16 x 50	16.26	7.070	0.380	14.7	50	659	37.2	81	10.5
W 16 x 45	16.13	7.035	0.345	13.3	45	586	32.8	72.7	9.3
W 16 x 40	16.01	6.995	0.305	11.8	40	518	28.9	64.7	8.3
W 16 x 36	15.86	6.985	0.295	10.6	36	448	24.5	56.5	7
W 16 x 31	15.88	5.525	0.275	9.12	31	375	12.4	47.2	4.5
W 16 x 26	15.69	5.5	0.250	7.68	26	301	9.6	38.4	3.5

W 14 x 132	14.66	14.725	0.645	38.8	132	1530	548	209	74.5
W 14 x 120	14.48	14.670	0.590	35.3	120	1380	495	190	67.5
W 14 x 109	14.32	14.605	0.525	32	109	1240	447	173	61.2
W 14 x 99	14.16	14.565	0.485	29.1	99	1110	402	157	55.2
W 14 x 90	14.02	14.520	0.440	26.5	90	999	362	143	49.9
W 14 x 82	14.31	10.130	0.510	24.1	82	882	148	123	29.3
W 14 x 74	14.17	10.070	0.450	21.8	74	796	134	112	26.6
W 14 x 68	14.04	10.035	0.415	20.0	68	723	121	103	24.2
W 14 x 61	13.89	9.995	0.375	17.9	61	640	107	92.2	21.5
W 14 x 53	13.92	8.060	0.370	15.6	53	541	57.7	77.8	14.3
W 14 x 48	13.79	8.030	0.340	14.1	48	485	51.4	70.3	12.8
W 14 x 43	13.66	7.995	0.305	12.6	43	428	45.2	62.7	11.3
W 14 x 38	14.10	6.770	0.310	11.2	38	385	26.7	54.6	7.9
W 14 x 34	13.98	6.745	0.285	10.0	34	340	23.3	48.6	6.9
W 14 x 30	13.84	6.730	0.270	8.85	30	291	19.6	42.0	5.8
W 14 x 26	13.91	5.025	0.255	7.69	26	245	8.9	35.3	3.5
W 14 x 22	13.74	5	0.230	6.49	22	199	7	29.0	2.8

W 12 x 136	13.41	12.4	0.79	39.9	136	1240	398	186	64.2
W 12 x 120	13.12	12.32	0.71	35.3	120	1070	345	163	56.0
W 12 x 106	12.89	12.22	0.61	31.2	106	933	301	145	49.3
W 12 x 96	12.71	12.16	0.55	28.2	96	833	270	131	44.4
W 12 x 87	12.53	12.125	0.515	25.6	87	740	241	118	39.7
W 12 x 79	12.38	12.08	0.47	23.2	79	662	216	107	35.8
W 12 x 72	12.25	12.04	0.43	21.1	72	597	195	97.4	32.4
W 12 x 65	12.12	12	0.39	19.1	65	533	174	87.9	29.1
W 12 x 58	12.19	10.01	0.36	17.0	58	475	107	78	21.4
W 12 x 53	12.06	9.995	0.345	15.6	53	425	95.8	70.6	19.2
W 12 x 50	12.19	8.08	0.37	14.7	50	394	56.3	64.7	13.9
W 12 x 45	12.06	8.045	0.335	13.2	45	350	50.0	58.1	12.4
W 12 x 40	11.94	8.005	0.295	11.8	40	310	44.1	51.9	11.0
W 12 x 35	12.50	6.56	0.3	10.3	35	285	24.5	45.6	7.5
W 12 x 30	12.34	6.52	0.26	8.8	30	238	20.3	38.6	6.2
W 12 x 26	12.22	6.490	0.23	7.7	26	204	17.3	33.4	5.3
W 12 x 22	12.31	4.03	0.26	6.5	22	156	4.7	25.4	2.3
W 12 x 19	12.16	4.005	0.235	5.6	19	130	3.8	21.3	1.9
W 12 x 16	11.99	3.990	0.22	4.7	16	103	2.8	17.1	1.4
W 12 x 14	11.91	3.970	0.2	4.2	14	88.6	2.4	14.9	1.2

W 10 x 112	11.36	10.415	0.755	32.9	112	716	236	126	45.3
W 10 x 100	11.1	10.340	0.680	29.4	100	623	207	112	40.0
W 10 x 88	10.84	10.265	0.605	25.9	88	534	179	98.5	34.8
W 10 x 77	10.60	10.190	0.530	22.6	77	455	154	85.9	30.1
W 10 x 68	10.40	10.130	0.470	20.0	68	394	134	75.7	26.4
W 10 x 60	10.22	10.080	0.420	17.6	60	341	116	66.7	23.0
W 10 x 54	10.09	10.030	0.370	15.8	54	303	103	60.0	20.6
W 10 x 49	9.98	10	0.340	14.4	49	272	93.4	54.6	18.7
W 10 x 45	10.10	8.020	0.350	13.3	45	248	53.4	49.1	13.3
W 10 x 39	9.92	7.985	0.315	11.5	39	209	45.0	42.1	11.3
W 10 x 33	9.73	7.960	0.290	9.71	33	170	36.6	35.0	9.2
W 10 x 30	10.47	5.81	0.3	8.84	30	170	16.7	32.4	5.8
W 10 x 26	10.33	5.770	0.26	7.6	26	144	14.1	27.9	4.9
W 10 x 22	10.17	5.750	0.240	6.5	22	118	11.4	23.2	4
W 10 x 19	10.24	4.020	0.250	5.6	19	96.3	3	18.8	2.1
W 10 x 17	10.11	4.010	0.240	5	17	81.9	3.6	16.2	1.8
W 10 x 15	9.99	4	0.230	4.4	15	68.9	2.9	13.8	1.5
W 10 x 12	9.87	3.960	0.190	3.5	12	53.8	2.2	10.9	1.1

W 8 x 67	9.00	8.280	0.570	19.7	67	272	88.6	60.4	21.4
W 8 x 58	8.75	8.220	0.510	17.1	58	228	75.1	52.0	18.3
W 8 x 48	8.5	8.110	0.400	14.1	48	184	60.9	43.3	15.0
W 8 x 40	8.25	8.070	0.360	11.7	40	146	49.1	35.5	12.2
W 8 x 35	8.12	8.020	0.310	10.3	35	127	42.6	31.2	10.6
W 8 x 31	8.00	7.995	0.285	9.1	31	110	37.1	27.5	9.3
W 8 x 28	8.06	6.535	0.285	8.3	28	98.0	21.7	24.3	6.6
W 8 x 24	7.93	6.495	0.245	7.1	24	82.8	18.3	20.9	5.6
W 8 x 21	8.28	5.270	0.250	6.2	21	75.3	9.8	18.2	3.7
W 8 x 18	8.14	5.250	0.230	5.3	18	61.9	8	15.2	3
W 8 x 15	8.11	4.015	0.245	4.4	15	48.0	3.4	11.8	1.7
W 8 x 13	7.99	4	0.230	3.8	13	39.6	2.7	9.9	1.4
W 8 x 10	7.89	3.940	0.170	2.9	10	30.3	2.1	7.8	1.1

W 6 x 25	6.38	6.080	0.320	7.3	25	53.4	17.1	16.7	5.6
W 6 x 20	6.20	6.020	0.260	5.9	20	41.4	13.3	13.4	4.4
W 6 x 16	6.28	4.030	0.260	4.7	16	32.1	4.4	10.2	2.2
W 6 x 15	5.99	5.990	0.230	4.4	15	29.1	9.3	9.7	3.1
W 6 x 12	6.03	4	0.230	3.6	12	22.1	3	7.3	1.5
W 6 x 9	5.90	3.940	0.170	2.7	9	16.4	2.2	5.6	1.1

W 5 x 19	5.15	5.030	0.270	5.5	19	26.2	9.1	10.2	3.6
W 5 x 16	5.01	5	0.240	4.7	16	21.3	7.5	8.5	3

W 4 x 13	4.16	4.060	0.280	3.8	13	11.3	3.9	5.5	1.9


Properties in imperial units of steel angles with equal legs
Size (in x in)	Dimensions				Static Parameters
	Depth h (in)	Thickness s (in)	Sectional Area (in²)	Weight (lb/ft)	Moment of Inertia I_x(in⁴)
	12 x 12	12	1 3/8	30.9	105	410.0
		12	1 1/4	28.3	96.4	377.5
		12	1 1/8	25.6	87.2	344.1
		12	1	22.9	77.8	310.4
10 x 10	10	1 3/8	25.6	87.1	232.1
	10	1 1/4	23.5	79.9	215.1
	10	1 1/8	21.2	72.3	196.2
	10	1	19.0	64.7	177.3
	10	7/8	16.7	56.9	157.6
	10	3/4	14.4	49.1	137.2
8 x 8	8	1 1/8	16.7	56.9	98.0
	8	1	15.0	51.0	89.0
	8	7/8	13.2	45.0	79.6
	8	3/4	11.4	38.9	69.7
	8	5/8	9.6	32.7	59.4
	8	9/16	8.7	29.6	54.1
	8	1/2	7.8	26.4	48.6
6 x 6	6	1	11.0	37.4	35.5
	6	7/8	9.7	33.1	31.9
	6	3/4	8.4	28.7	28.2
	6	5/8	7.1	24.2	24.2
	6	9/16	6.4	21.9	22.1
	6	1/2	5.8	19.6	19.9
	6	7/16	5.1	17.2	17.7
	6	3/8	4.4	14.9	15.4
	6	5/16	3.7	12.4	13.0
5 x 5	5	7/8	8.0	27.2	17.8
	5	3/4	6.9	23.6	15.7
	5	5/8	5.9	20.0	13.6
	5	1/2	4.8	16.2	11.3
	5	7/16	4.2	14.3	10.0
	5	3/8	3.6	12.3	8.74
	5	5/16	3.0	10.3	7.42
4 x 4	4	3/4	5.4	18.5	7.67
	4	5/8	4.6	15.7	6.66
	4	1/2	3.8	12.8	5.56
	4	7/16	3.3	11.3	4.97
	4	3/8	2.9	9.8	4.36
	4	5/16	2.4	8.2	3.71
	4	1/4	1.9	6.6	3.04
3 1/2 x 3 1/2	3 1/2	1/2	3.3	11.1	3.64
	3 1/2	7/16	2.9	9.8	3.26
	3 1/2	3/8	2.5	8.5	2.87
	3 1/2	5/16	2.1	7.2	2.45
	3 1/2	1/4	1.7	5.8	2.01
3 x 3	3	1/2	2.75	9.4	2.22
	3	7/16	2.43	8.3	1.99
	3	3/8	2.11	7.2	1.76
	3	5/16	1.78	6.1	1.51
	3	1/4	1.44	4.9	1.24
	3	3/16	1.09	3.7	0.96
2 1/2 x 2 1/2	2 1/2	1/2	2.25	7.7	1.23
	2 1/2	3/8	1.73	5.9	0.98
	2 1/2	5/16	1.46	5.0	0.85
	2 1/2	1/4	1.19	4.1	0.70
	2 1/2	3/16	0.90	3.1	0.55
2 x 2	2	3/8	1.36	4.7	0.48
	2	5/16	1.15	3.9	0.42
	2	1/4	0.94	3.2	0.35
	2	3/16	0.72	2.4	0.27
	2	1/8	0.48	1.7	0.19

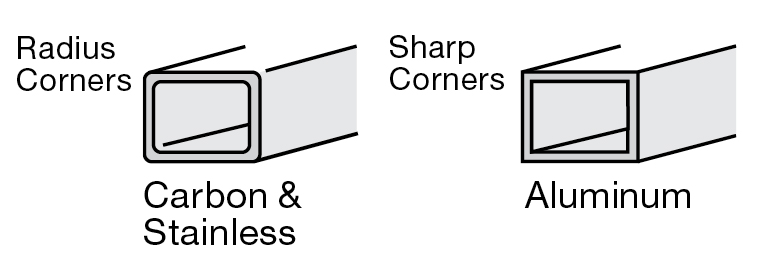

Square Steel Tubing (ASTM A-500, A-513 & A-36)
Size in inches	Wall thickness		Weight per ft
Size in inches	Gauge	Decimal	Weight per ft
3/8 x 3/8	20	.035	.162
	18	.049	.217
	16	.065	.274
1/2 x 1/2	20	.035	.221
	18	.049	.301
	16	.065	.384
5/8 x 5/8	20	.035	.281
	18	.049	.384
	16	.065	.495
3/4 x 3/4	20	.035	.340
	18	.049	.467
	16	.065	.605
	14	.083	.753
	12	.109	.950
	11	.120	1.028
13/16 x 13/16	18	.049	.510
13/16 x 13/16	16	.065	.688
.843 x .843	18	.049	.529
.843 x .843	16	.065	.688
7/8 x 7/8	20	.035	.400
	18	.049	.550
	16	.065	.716
	14	.083	.894
1 x 1	20	.035	.459
	18	.049	.634
	16	.065	.827
	15	.072	.909
	14	.083	1.035
	13	.095	1.169
	12	.109	1.320
	11	.120	1.436
	10	.134	1.578
	10	.188	1.768
1-1/8 x 1-1/8	20	.035	.519
	18	.049	.717
	16	.065	.937
	14	.083	1.176
	13	.095	1.506
	12	.109	1.640
1-1/4 x 1-1/4	20	.035	.578
	18	.049	.800
	16	.065	1.047
	15	.072	1.182
	14	.083	1.317
	13	.095	1.492
	12	.109	1.691
	11	.120	1.844
	10	.134	1.889
	10	.188	2.408
1-3/8 x 1-3/8	18	.049	.884
1-3/8 x 1-3/8	16	.065	1.158
1-1/2 x 1-1/2	20	.035	.697
	18	.049	.967
	16	.065	1.268
	15	.072	1.434
	14	.083	1.599
	13	.095	1.815
	12	.109	2.062
	11	.120	2.252
	10	.134	2.489
	7	.188	3.355
	3	.250	3.706
1-3/4 x 1-3/4	20	.035	.816
	18	.049	1.134
	16	.065	1.490
	14	.083	1.882
	13	.095	2.138
	12	.109	2.432
	11	.120	2.660
	10	.134	2.945
	7	.188	3.687
1-7/8 x 1-7/8	16	.065	1.600
1-7/8 x 1-7/8	14	.083	2.023
2 x 2	20	.035	.935
	18	.049	1.300
	16	.065	1.710
	14	.083	2.164
	13	.095	2.461
	12	.109	2.802
	11	.120	3.050
	10	.134	3.397
	7	.188	4.320
	3	.250	5.410
	2	.313	7.181
2-1/8 x 2-1/8	12	.109	2.990
	11	.120	3.270
	10	.134	3.629
2.170 x 2.170	12	.109	3.055
	11	.120	3.346
	10	.134	3.710
2-1/4 x 2-1/4	16	.065	1.932
	14	.083	2.446
	13	.095	2.785
	12	.109	3.174
	11	.120	3.476
	7	.188	5.272
	3	.250	6.800
2-1/2 x 2-1/2	16	.065	2.152
	14	.083	2.728
	13	.095	3.107
	12	.109	3.544
	11	.120	3.900
	10	.134	4.309
	7	.188	5.590
	3	.250	7.110
	2	.313	8.438
3 x 3	16	.065	2.594
	14	.083	3.292
	13	.095	3.753
	12	.109	4.286
	11	.120	4.750
	10	.134	5.219
	7	.188	6.870
	3	.250	8.810
	2	.313	10.580
	--	.375	12.165
3-1/2 x 3-1/2	11	.120	5.610
	7	.188	8.150
	3	.250	10.510
	2	.313	12.700
	--	.375	14.717
4 x 4	14	.083	4.422
	12	.109	5.768
	11	.120	6.460
	10	.134	7.045
	7	.188	9.420
	3	.250	12.210
	2	.313	14.830
	--	.375	17.270
	--	.500	21.630
4-1/2 x 4-1/2	7	.188	10.720
4-1/2 x 4-1/2	3	.250	13.910
5 x 5	11	.120	7.964
	7	.188	11.970
	3	.250	15.620
	2	.313	19.080
	--	.375	22.370
	--	.500	28.430
6 x 6	7	.188	14.530
	3	.250	19.020
	2	.313	23.340
	--	.375	27.480
	--	.500	35.240
7 x 7	7	.188	17.080
	3	.250	22.420
	2	.313	27.590
	--	.375	32.580
	--	.500	42.050
8 x 8	7	.188	19.630
	3	.250	25.820
	2	.313	31.840
	--	.375	37.690
	--	.500	48.850
10 x 10	7	.188	24.730
	3	.250	32.630
	2	.313	40.350
	--	.375	47.900
	--	.500	62.460
12 x 12	3	.250	39.430
	2	.313	48.860
	--	.375	58.100
	--	.500	76.070
14 x 14	2	.313	57.360
	--	.375	68.310
	--	.500	89.680
16 x 16	2	.313	65.870
	--	.375	78.520
	--	.500	103.300
Stainless Structural stocks tee shape beams Aladdin Steel stocks square and rectangular tubes MK Metals stocks square and rectangular tubes Metric Metals stocks metric square and rectangular tubes Yarde Metals stocks different shape beams including aerospace materials. Morse Steel Service offer plates, sheets, angle beams, tubes, pipes, channels, bars, etc.
